Activa fitment Procedure

Fitment procedure for Honda Activa 3G

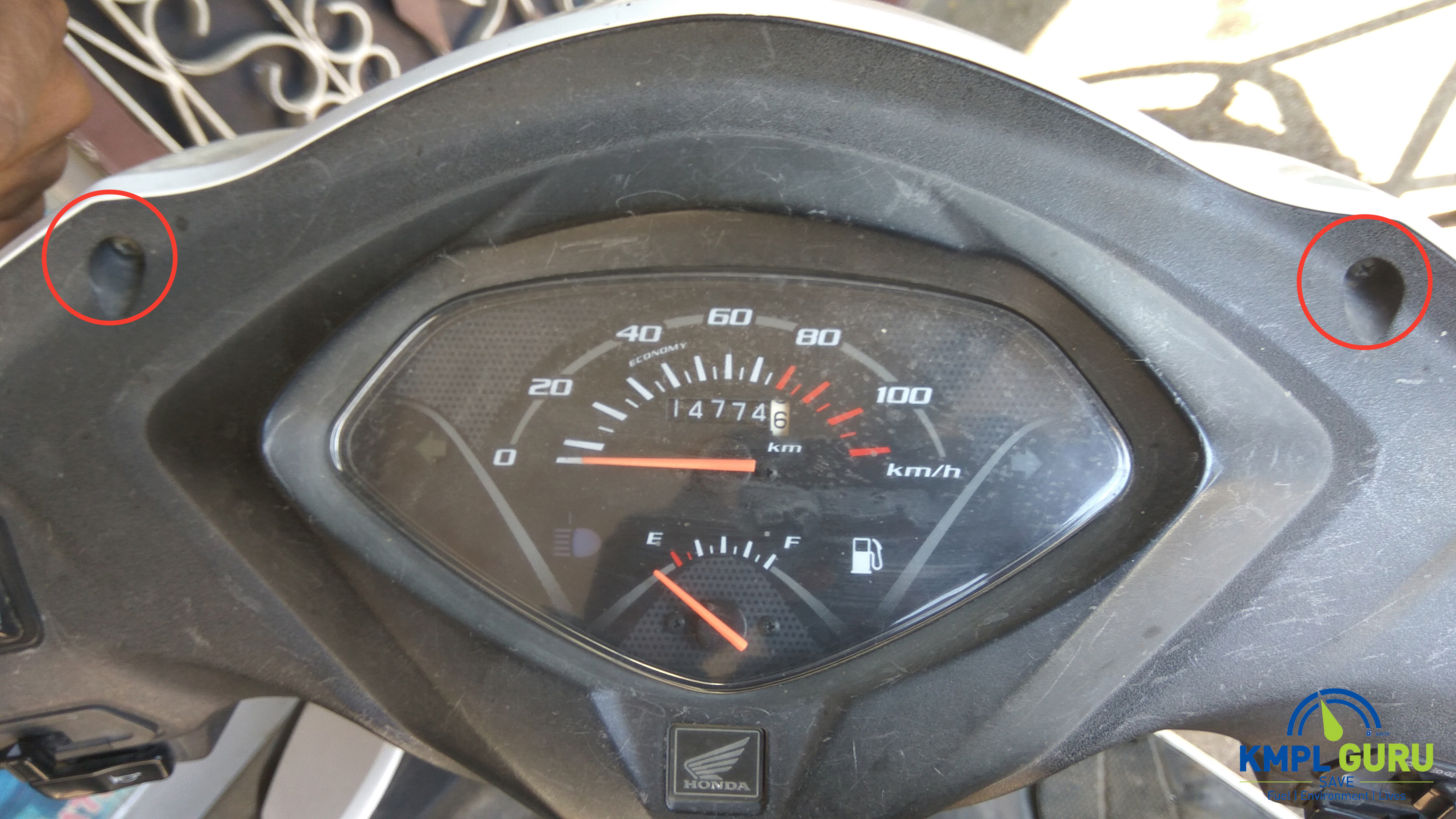

1. Physically inspect the speedometer for screws and open then by turning anti-clockwise.

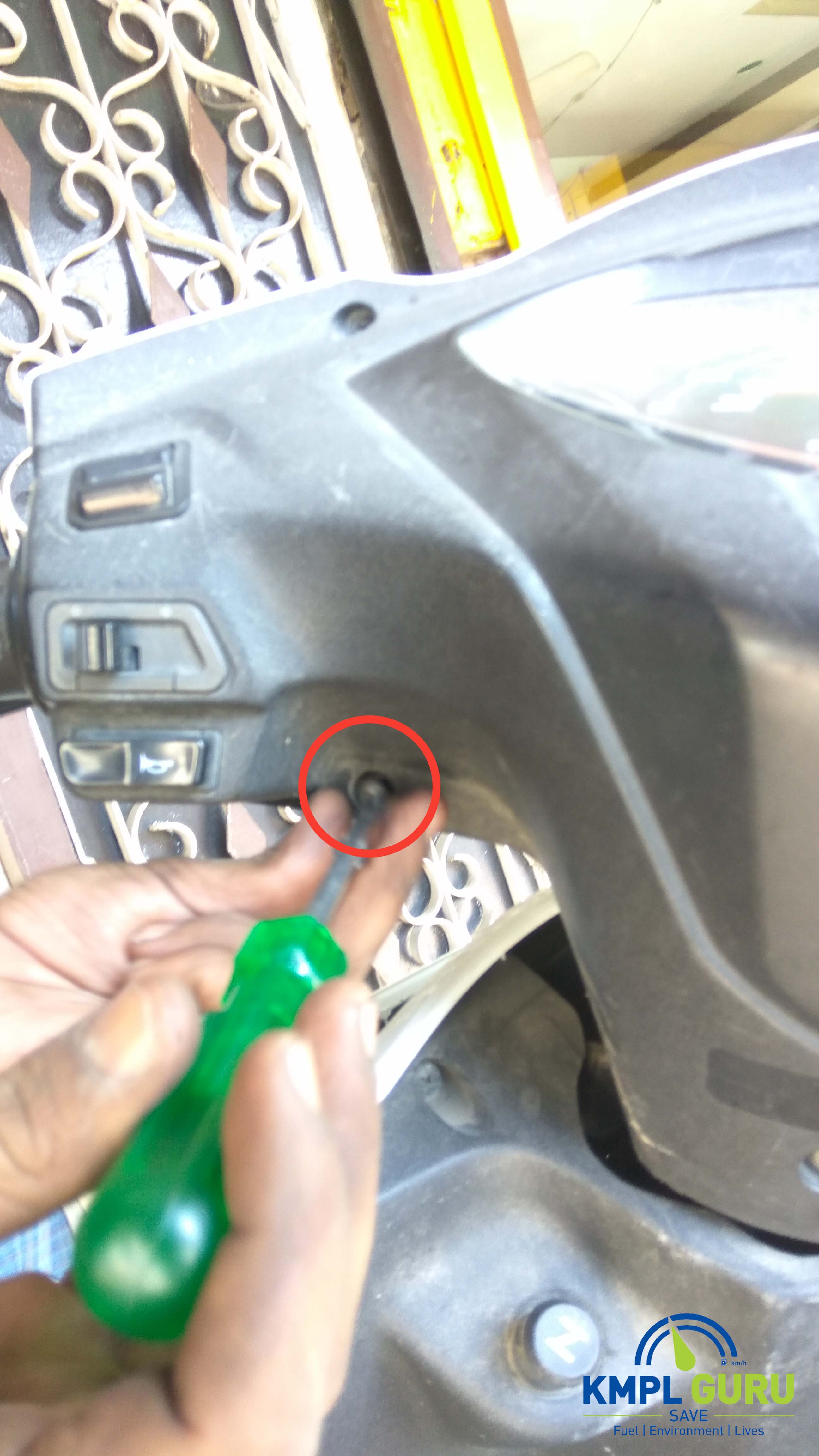

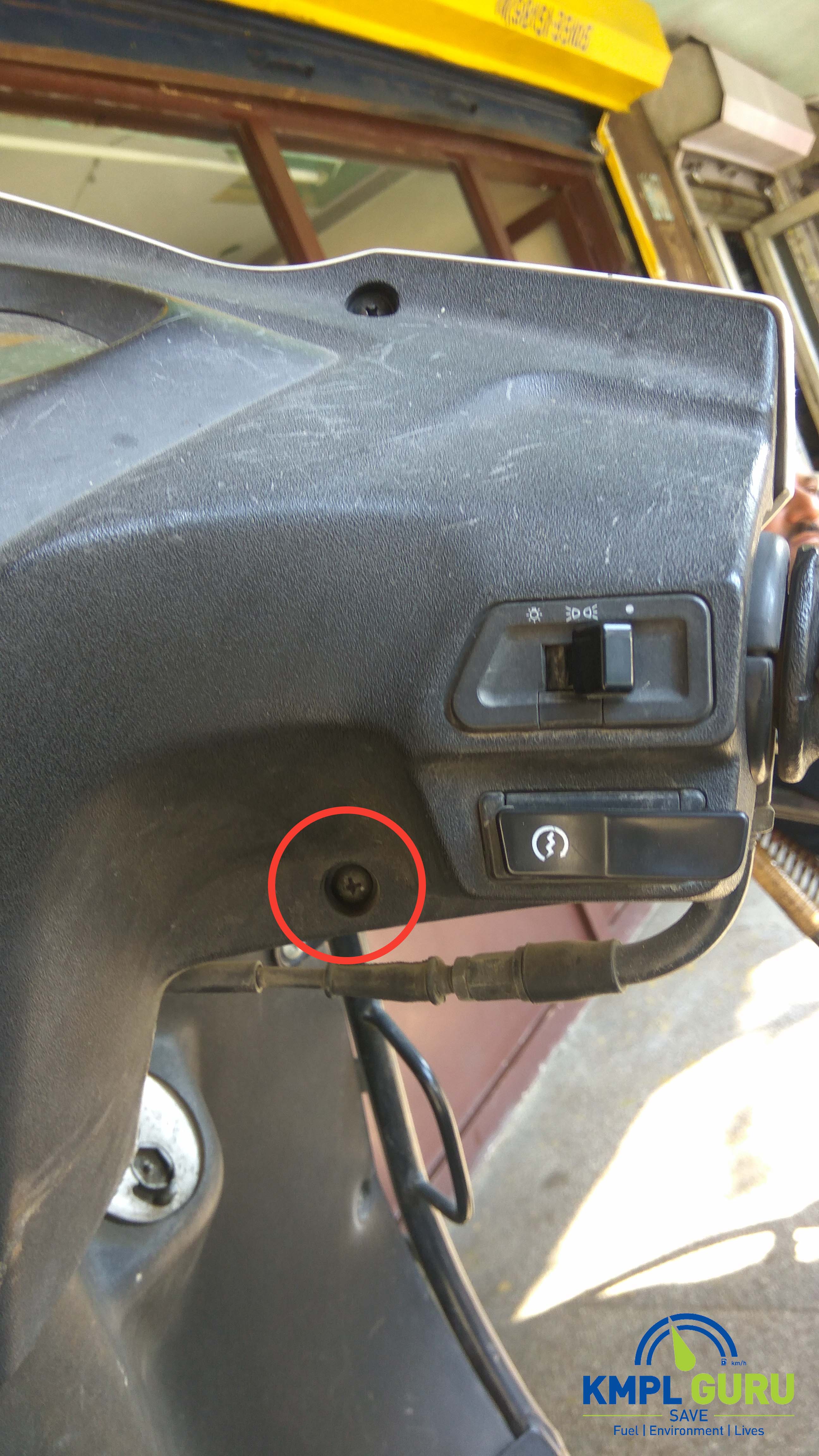

2. Open the screw beside starting switch on right side and beside the Horn switch on left side.

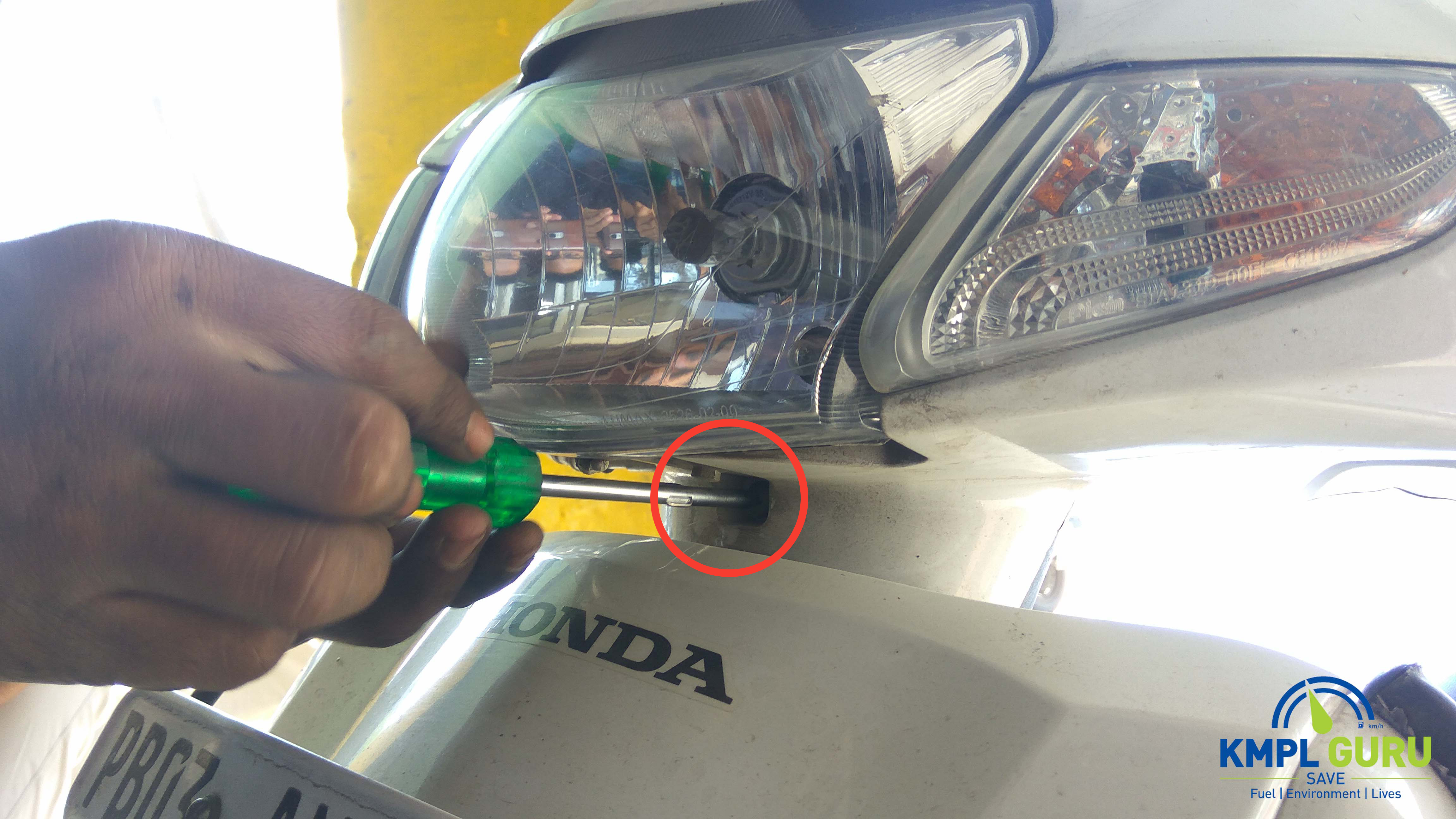

3. Open the screw which is below the headlight.

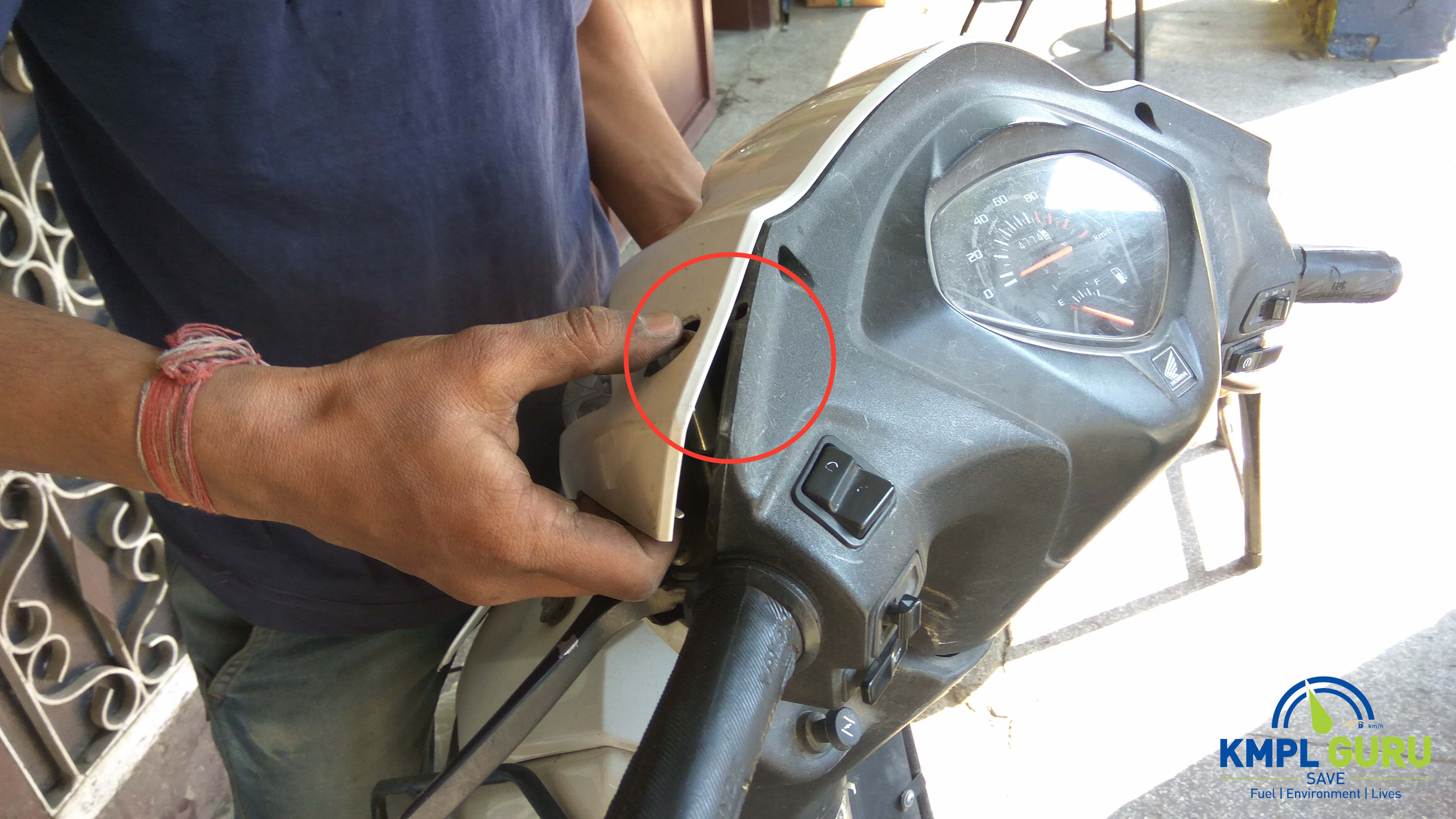

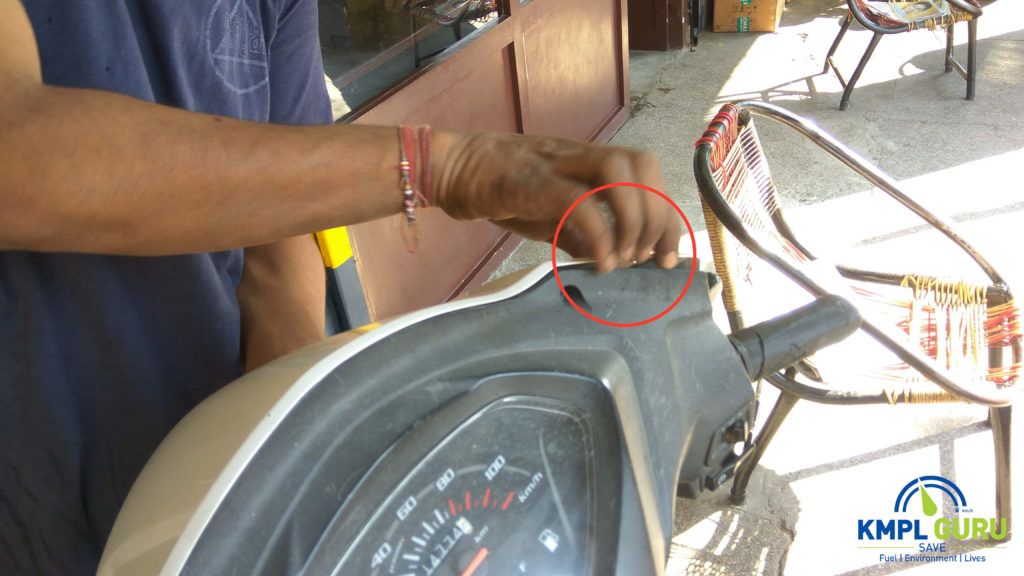

4. Now you will be able to remove the front cover by gently pull back from both sides.

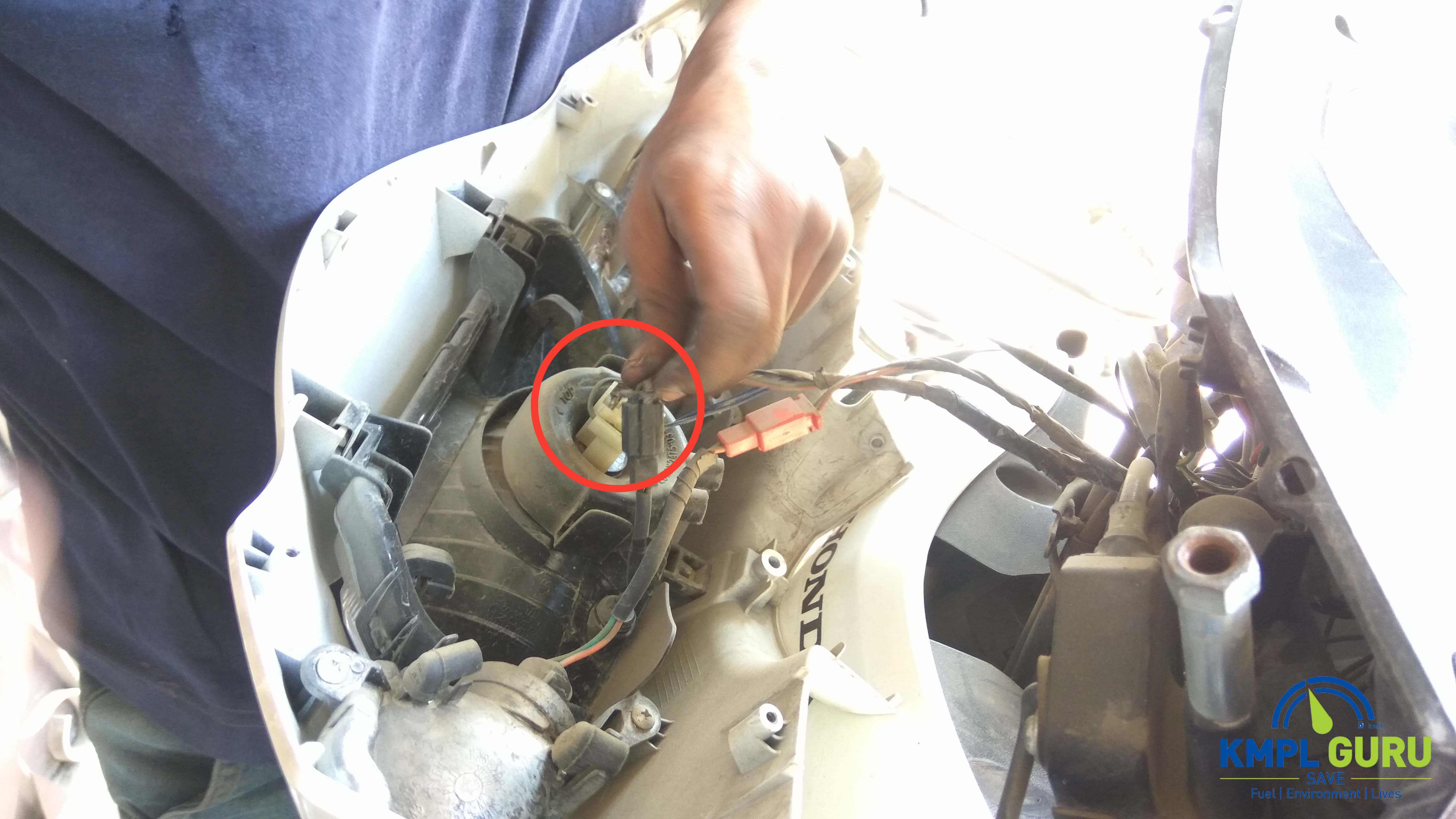

5. Remove the wiring connectors to completely remove the front cover.

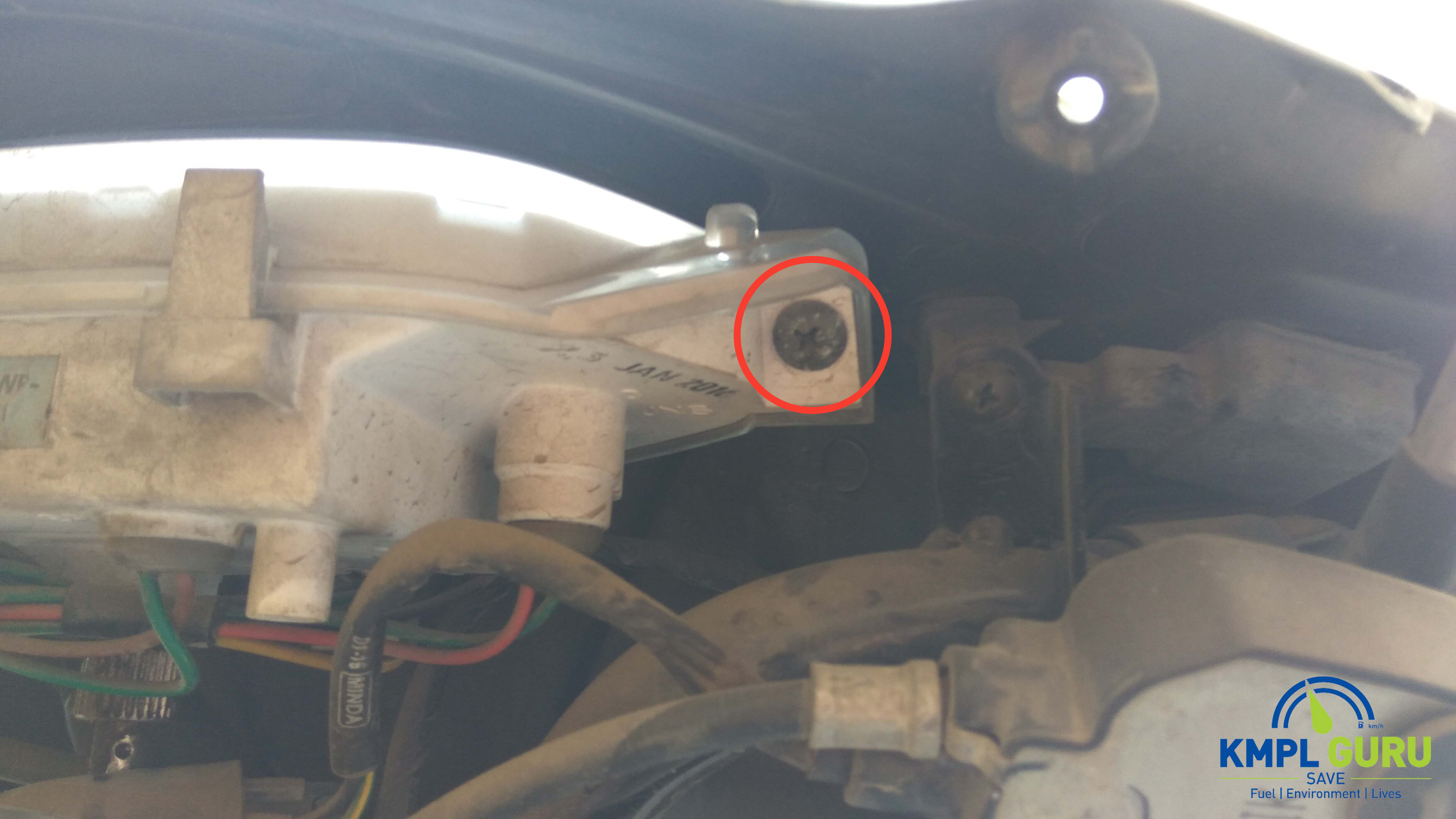

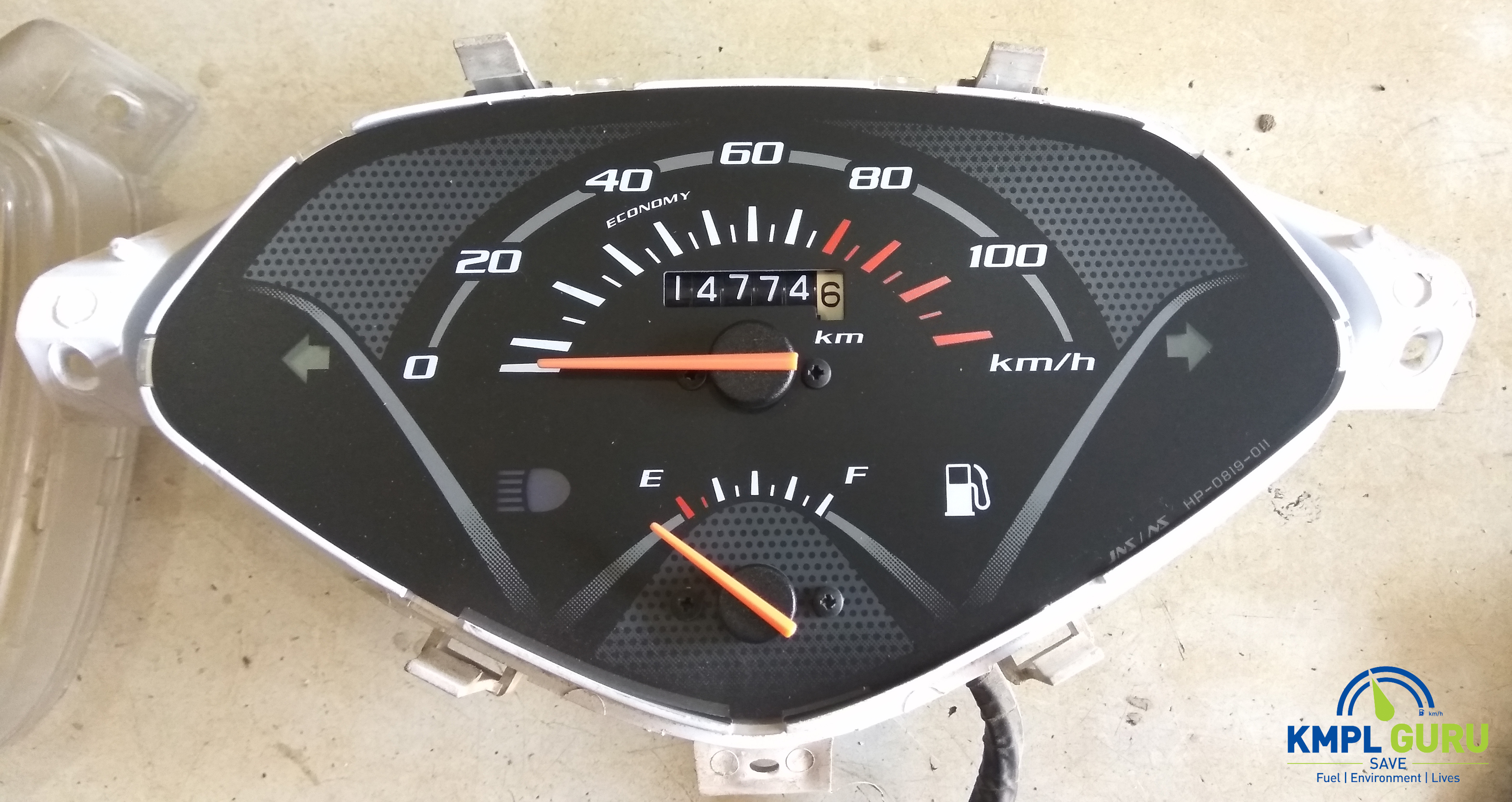

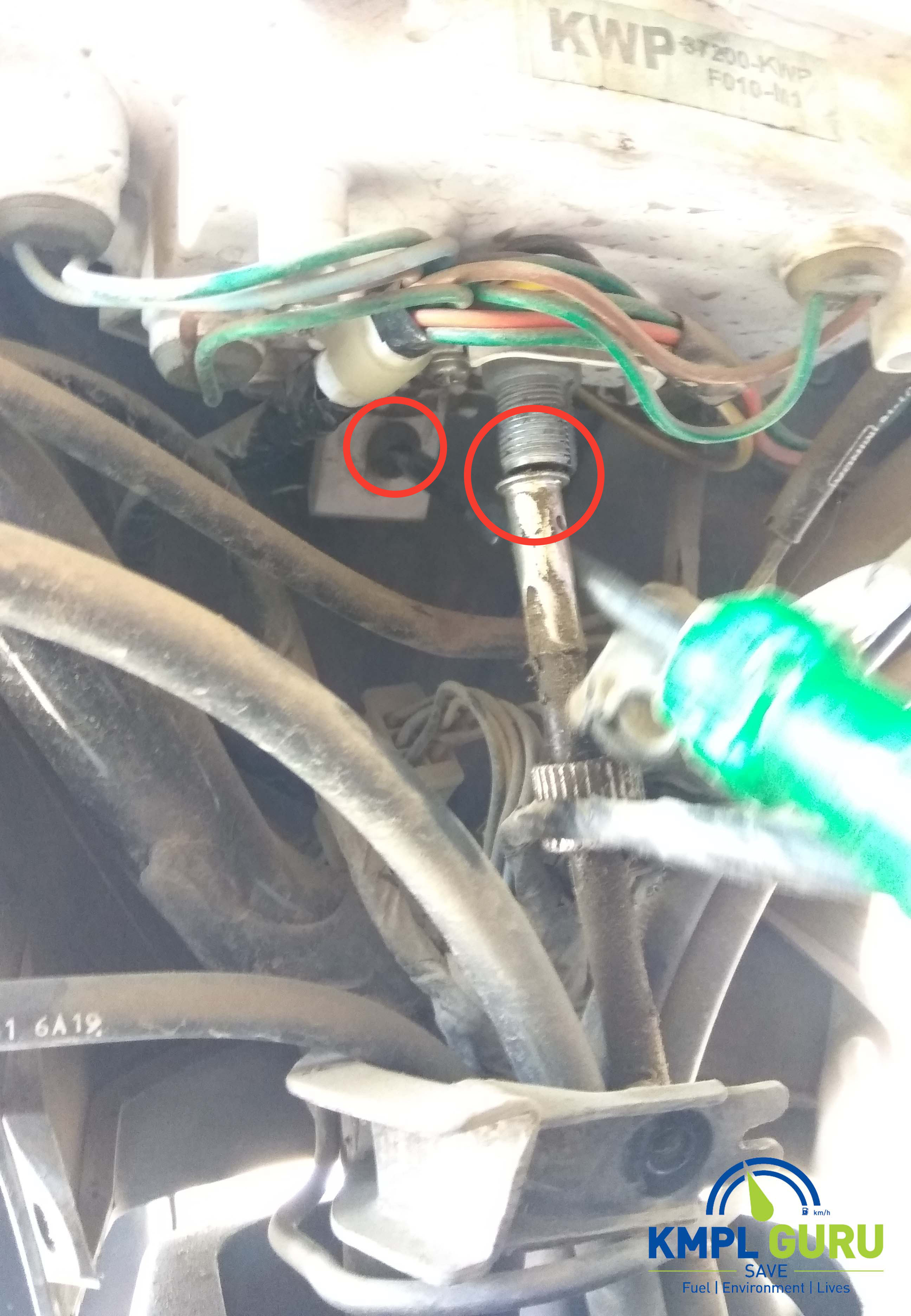

6. To remove speedometer, remove three screws on Left, Right, bottom of speedometer and Speedometer cable.

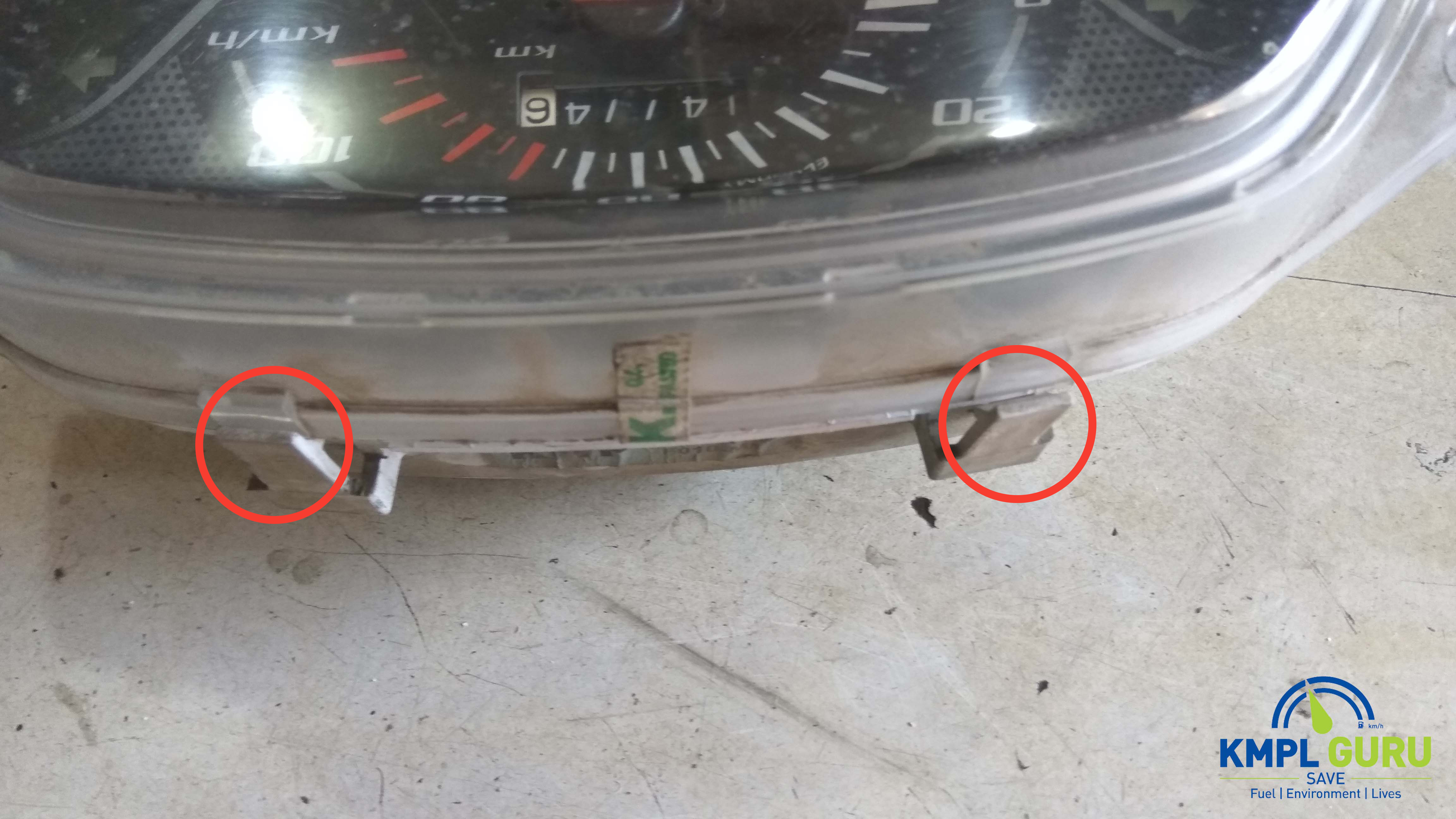

7. To open the speedometer glass, gently push on four locks (Two at top, two at bottom)

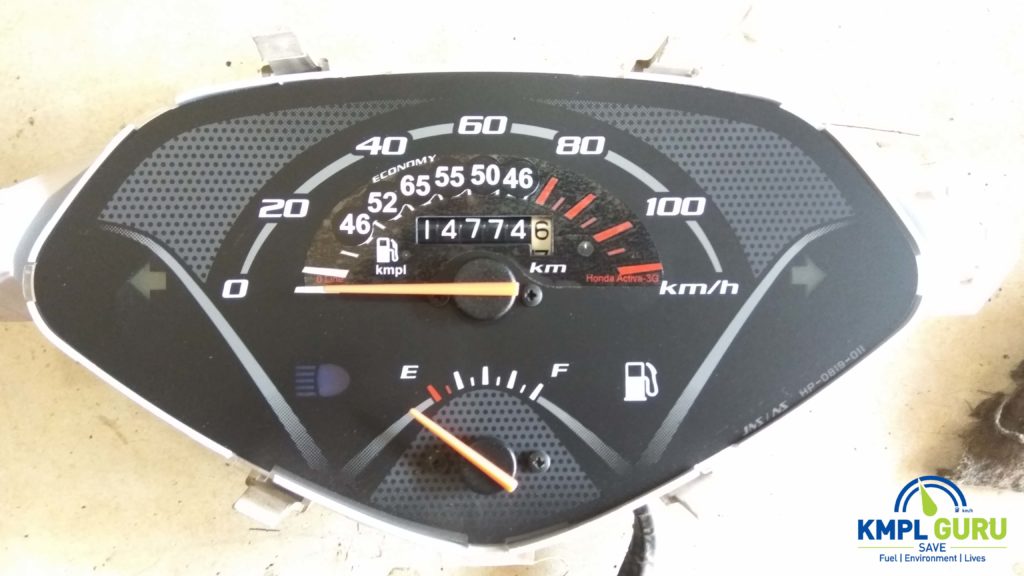

8. Now paste Kmpl GURU on the speedometer plate.

9. Now follow the above said procedure in reverse order and get your speedometer fitted back to its position.
